Buy Mimaki TS500-1800 Gen5 Printhead from Quantum Tronic is 100% safe,Because purchase products at Quantum Tronic provide a 100% money back guarantee.Location Quantum Tronic : Jl. Arief Rahman Hakim no.59 Medan.To purchase online visit the website :www.quantumtronic.com
Price : EUR 1159/ Pcs
Min Order : 1 - 5 Pcs
Lead Time :3-7 Days
Port : CIF / Kualanamu International Airport
Terms : Bank Transfer, Wise, Western union, Moneygram & WorldRemit
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

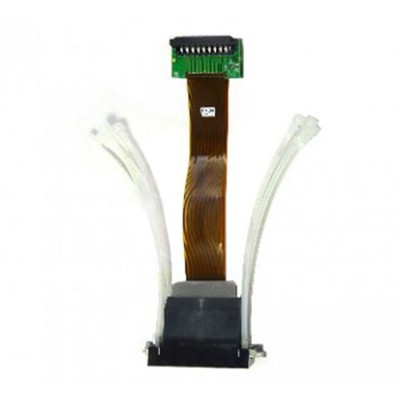

Mimaki TS500-1800 Gen5 printhead Assy Type-D - M014140
This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.
Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M014140
Remarks: Original
Specifications:
Model
PRH-MIM-006
Head materials SST, Nickel alloy, Epoxy Adhesive
Number of nozzles Four 320 nozzles
Nozzle spacing 0.1693 mm
Nozzle density up to 600 npi
Nozzle plate surface Coated SST
Piezo type D33 Stacked PZT
Native drop volume 7 pl
Drop volume range 7 - 35 pl
Drop velocity 7 m/s
Jetting frequency Up to 60 kHZ
Temperature control Integrated Heater and Thermistor
Operator temperature range Up to 80° C
Life 100 billion actuations per nozzle
Dimensions 89 x 25 x 69 mm (not include cables)
